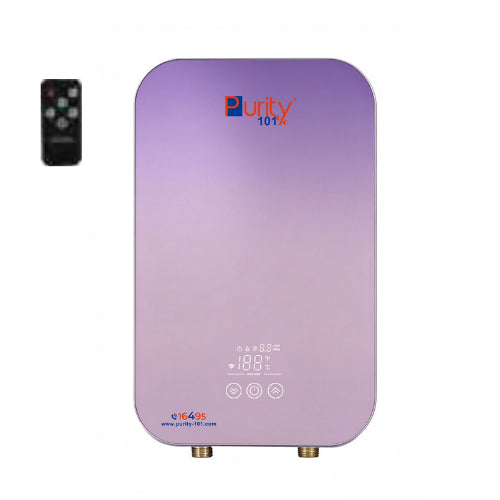

Water Heaters

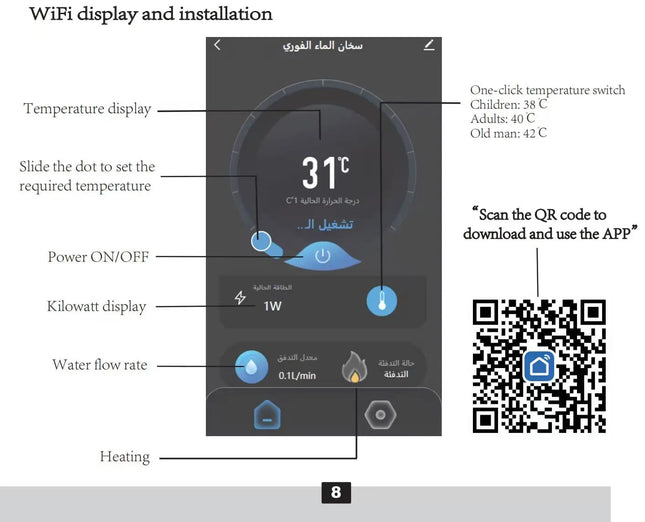

⮚ German technology⮚ Fully digitalFull control via mobile using the Smart Life app.⮚ Remote control (operable from a distance of 3 meters)⮚ Heating range: 30°C (minimum) to 55°C (maximum)⮚ Maximum water flow rate: 5 L/min⮚ Internal memory retains the last used settings⮚ Smart performance: Automatic power consumption adjustment based on water flow and desired temperature (ECO MODE) Ø Supplies a full bathroom (provided the distance does not exceed 3 meters)Complete Safety⮚ Overflow Protection⮚ Protection against excessive water inflow⮚ Leakage Protection (E2)⮚ Protection against electrical or water leakage⮚ Freeze Protection⮚ Protection against water freezing inside the unit⮚ Dry-Burn Protection⮚ Prevents operation when no water is present⮚ Overheating Protection (E1)⮚ Protection against excessive water temperature Electrical Specifications : ⮚ 7000W⮚ 32AInstallation Requirements⮚ Wire gauge: 2 x 4mm²⮚ Circuit breaker: 40A⮚ Maximum water pressure: 6 bar⮚ Minimum flow rate for operation: 1.2 L/minWarranty⮚ Five years from the date of installationWater Heater Installation ConditionsHow to Submit a Request⮚ Contact the company’s hotline: 16495 Note ImportantThe customer may open the carton solely to take measurements; however, installation must be performed exclusively by a company technician.Conditions and restrictions for water heater installation Instant Water Heater1- All plumbing work and mixer installations must be completed.2- Provide certified wiring compatible with the heater’s power rating.3- Provide a certified automatic circuit breaker compatible with the heater’s power rating.4- Ensure there are no water pipes at the installation site; installation is at the customer’s own risk.5- Water connections must be prepared by the customer, not the company.6- Installation inside gypsum board is not permitted (to prevent damage to the gypsum in the event of a leak and due to maintenance/installation difficulties); installation is at the customer’s own risk.7- Installation directly beneath a water source is not permitted; it may be installed under a sink, away from potential leak sources.8- Not permitted. Install the heater near the gas source, maintaining a minimum distance of 100 cm between the heater and the gas source.9- Installing 21 kW or 24 kW (3-phase) heaters using external connections is not permitted; they must be connected directly to the source. If the product is installed using external connections, the installation is done at the customer’s own risk. 10- Installing the unit upside down is not permitted; it must be installed vertically only.
