⮚ German technology
⮚ Fully digital

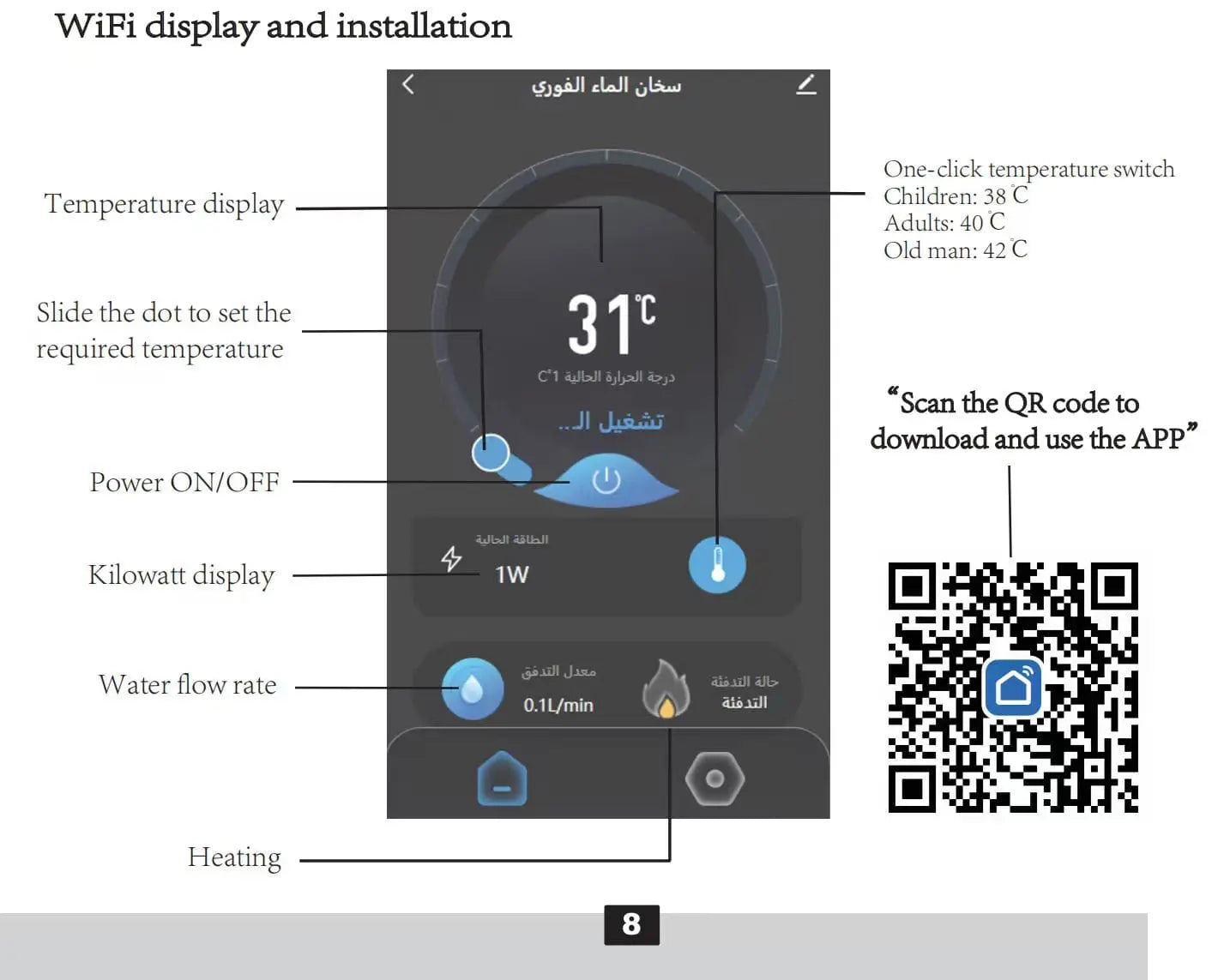

Full control via mobile using the Smart Life app.
⮚ Remote control (operable from a distance of 3 meters)
⮚ Heating range: 30°C (minimum) to 55°C (maximum)
⮚ Maximum water flow rate: 5 L/min
⮚ Internal memory retains the last used settings
⮚ Smart performance: Automatic power consumption adjustment based on water flow and desired temperature (ECO MODE) Ø Supplies a full bathroom (provided the distance does not exceed 3 meters)
Complete Safety
⮚ Overflow Protection
⮚ Protection against excessive water inflow
⮚ Leakage Protection (E2)
⮚ Protection against electrical or water leakage
⮚ Freeze Protection
⮚ Protection against water freezing inside the unit
⮚ Dry-Burn Protection
⮚ Prevents operation when no water is present
⮚ Overheating Protection (E1)
⮚ Protection against excessive water temperature
Electrical Specifications :
⮚ 7000W
⮚ 32A
Installation Requirements
⮚ Wire gauge: 2 x 4mm²
⮚ Circuit breaker: 40A
⮚ Maximum water pressure: 6 bar
⮚ Minimum flow rate for operation: 1.2 L/min
Warranty
⮚ Five years from the date of installation
Water Heater Installation Conditions
How to Submit a Request
⮚ Contact the company’s hotline: 16495
Note Important
The customer may open the carton solely to take measurements; however, installation must be performed exclusively by a company technician.
Conditions and restrictions for water heater installation Instant Water Heater
1- All plumbing work and mixer installations must be completed.
2- Provide certified wiring compatible with the heater’s power rating.
3- Provide a certified automatic circuit breaker compatible with the heater’s power rating.
4- Ensure there are no water pipes at the installation site; installation is at the customer’s own risk.
5- Water connections must be prepared by the customer, not the company.
6- Installation inside gypsum board is not permitted (to prevent damage to the gypsum in the event of a leak and due to maintenance/installation difficulties); installation is at the customer’s own risk.
7- Installation directly beneath a water source is not permitted; it may be installed under a sink, away from potential leak sources.
8- Not permitted. Install the heater near the gas source, maintaining a minimum distance of 100 cm between the heater and the gas source.
9- Installing 21 kW or 24 kW (3-phase) heaters using external connections is not permitted; they must be connected directly to the source. If the product is installed using external connections, the installation is done at the customer’s own risk. 10- Installing the unit upside down is not permitted; it must be installed vertically only.
