Key Specifications
German technology
Fully digital

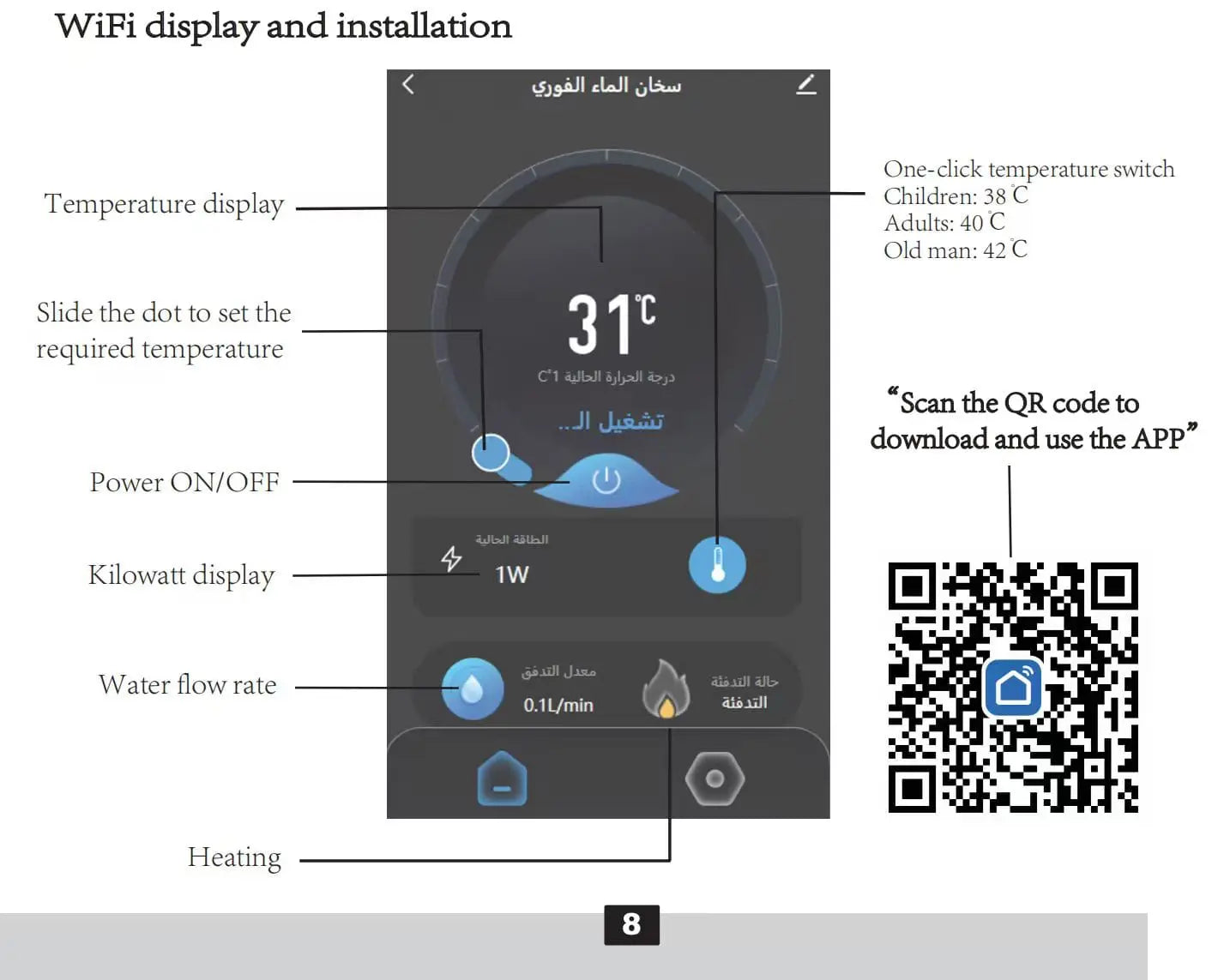

Full control via mobile using the Smart Life app.
Remote control (operable from a distance of 3 meters)
Heating range: 30°C (min) to 55°C (max)
Internal memory retains the last used settings
Maximum water flow: 5 L/min
Smart Performance: Automatic power consumption adjustment based on water flow and desired temperature (ECO MODE)
Covers a full bathroom setup (provided the distance does not exceed 5 meters)
Complete safety features:
Overflow Protection
Protection against excessive water inflow
Leakage Protection (Error Code E2)
Protection against electrical or water leakage
Freeze Protection
Prevents water from freezing inside the unit
Dry-Burn Protection
Prevents operation without water
Overheating Protection (Error Code E1)
Protection against excessive water temperature
Electrical Power
9000W – 220V
11000W – 240V
41A
Installation Requirements
Wire gauge: 2 x 6mm²
Circuit breaker: 50A–63A
Maximum water pressure: 6 bar
Minimum flow rate for operation: 1.2 L/min
Warranty
Five years from the date of installation
Heater Installation Conditions
How to submit a request
Contact the company’s short number: 16495
Important Note
The customer may open the box to take measurements, but installation must be performed exclusively by a company technician.
Conditions and Restrictions for Instant Water Heater Installation
1. All plumbing work and mixer installations must be completed.
2. Certified wiring compatible with the heater’s power rating must be provided. -3 Provide an approved automatic circuit breaker matching the heater’s power rating.
-4 Ensure there are no water pipes at the installation site; installation is performed at the customer’s own risk.
-5 Water connections must be prepared by the customer, not the company.
-6 Installation inside a gypsum board structure is prohibited to prevent damage to the gypsum in the event of a leak and to avoid maintenance and installation difficulties; installation in such a manner is at the customer’s own risk.
-7 Installation directly beneath a water source is prohibited; however, it may be installed under a sink, provided it is away from potential leak sources.
-8 Installation near a gas source is prohibited (a minimum distance of 100 cm must be maintained between the heater and the gas source).
-9 Installation of 21 kW or 24 kW (3-phase) heaters using external connections is prohibited; they must be connected directly to the power source. Installation using external connections is at the customer’s own risk.
-10 Upside-down installation is prohibited; the unit must be installed vertically only.
