Key Specifications
German technology
Fully digital

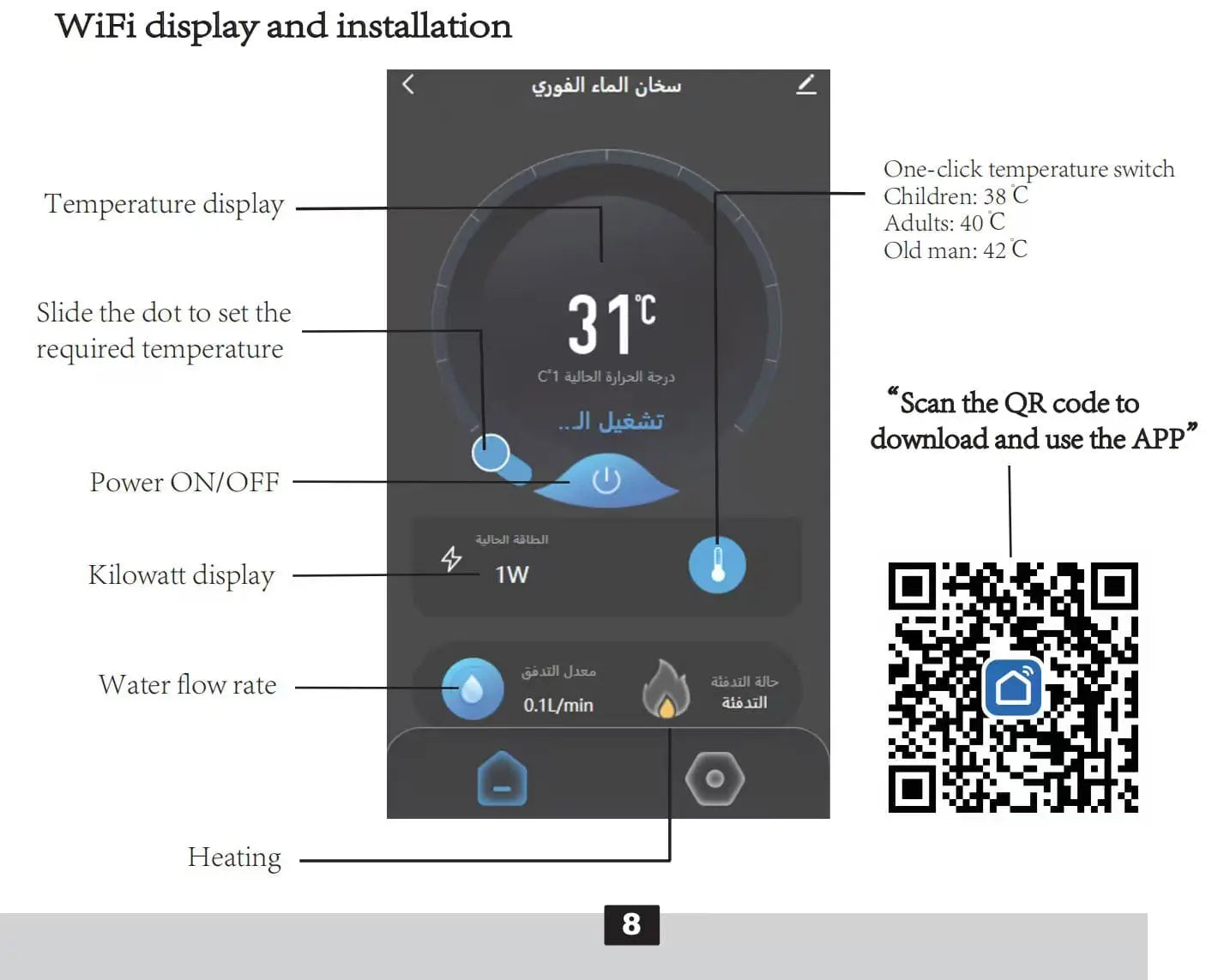

Full control via mobile using the Smart Life app.
Remote control (operable from a distance of 3 meters)
Temperature range: 30°C (minimum) to 55°C (maximum)
Internal memory retains the last used settings
Maximum water flow rate: 7 liters/minute
Smart performance: Automatic power consumption adjustment based on water flow and desired temperature (ECO MODE) Supplies two showers, provided the distance does not exceed 7 meters.
Boost Power Mode: Supports an “Extra Power” feature for manual current draw control (8 levels).
One-Click Temperature Option:
Children: 38°C
Adults: 40°C
Elderly: 42°C
Comprehensive Safety Features:
Overflow Protection: Protects against excessive water inflow.
Leakage Protection (E2): Protects against electrical or water leaks.
Freeze Protection: Prevents water from freezing inside the unit.
Dry-Burn Protection: Prevents operation without water.
Overheating Protection (E1): Protects against excessive water temperature.
Electrical Specifications:
11,000W – 220V
13,000W – 240V
50A
Installation Requirements:
Wire gauge: 6 x 2mm
Circuit breaker: 63A–50A
Maximum water pressure: 6 bar
Minimum flow rate for operation: 1.2 L/min
Warranty:
Five years from the date of installation.
Heater Installation Terms:
How to submit a request:
Contact the company’s short-code number: 16495.
Important Note:
The customer may open the carton solely to take measurements; however, installation must be performed exclusively by a company technician.
Conditions and Restrictions for Instant Water Heater Installation:
1. All plumbing work and mixer tap installations must be completed.
2. Provide certified wiring compatible with the heater’s power rating.
3. Provide a certified circuit breaker compatible with the heater’s power rating.
4. Ensure no water pipes are located at the specific installation point; installation is at the customer’s own risk.
5. Water connections must be prepared by the customer, not the company. -6 Installation of the heater inside a gypsum board enclosure is prohibited to prevent damage to the gypsum in the event of a leak and to avoid difficulties regarding maintenance and installation; installation is performed at the customer’s own risk.
-7 Installation of the heater directly beneath a water source is prohibited; it may be installed under a sink, provided it is positioned away from the potential source of a leak.
-8 Installation of the heater near a gas source is prohibited (a minimum distance of 100 cm must be maintained between the heater and the gas source).
-9 Installation of 21 kW or 24 kW (3-phase) heaters using external connections is prohibited; they must be connected directly to the power source. Installation is performed at the customer’s own risk if the product is installed using external connections. -10 Upside-down installation of the unit is prohibited; it must be installed vertically only.
