Key Specifications

• Technology: German Technology.

• Control System: Fully Digital.

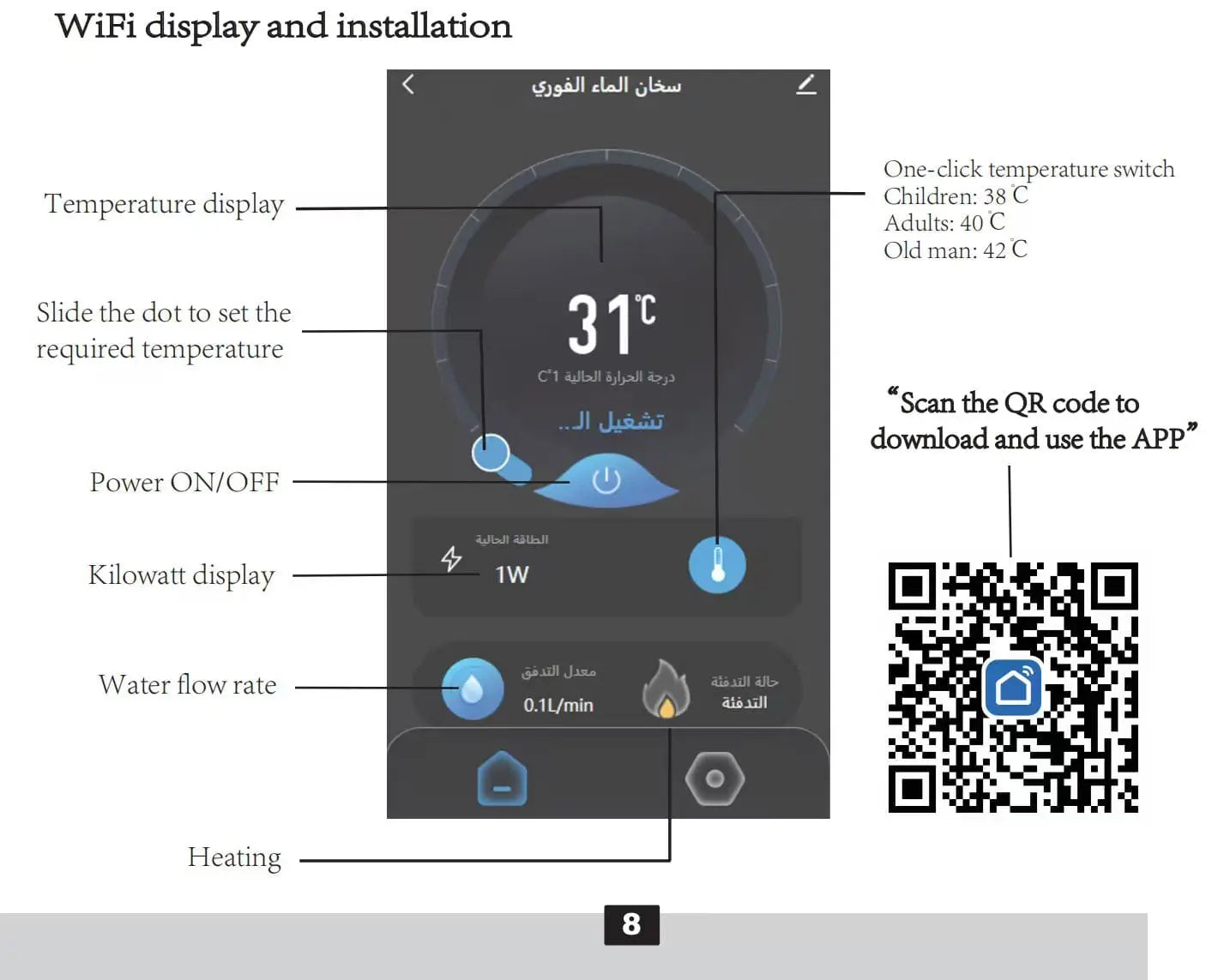

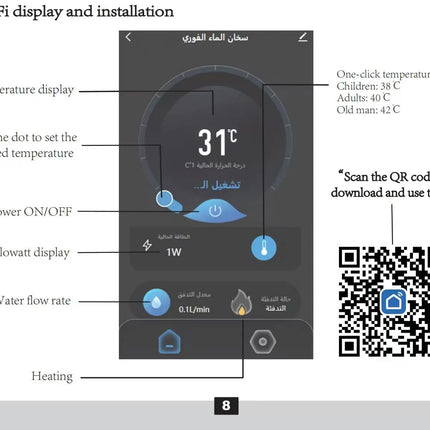

• Smart Control: Full control via mobile using the Smart Life app.

• Remote Control: Operable from a distance of up to 3 meters.

• Temperature Range: 30°C (minimum) to 55°C (maximum).

• Memory Function: Internal memory retains the last used settings.

• Maximum Water Flow Rate: 7 liters/minute.

• ECO Mode: Automatically adjusts power consumption based on water flow and the desired temperature.

• Water Supply Capacity: Supplies two showers, provided the distance does not exceed 7 meters.

• Boost Power Mode: Extra Power feature with 8 levels for manual current draw control.

One-Click Temperature Settings

• Children: 38°C.

• Adults: 40°C.

• Elderly: 42°C.

Comprehensive Safety Features

• Overflow Protection: Protects against excessive water inflow.

• Leakage Protection (E2): Protects against electrical or water leaks.

• Freeze Protection: Prevents water from freezing inside the unit.

• Dry-Burn Protection: Prevents operation without water.

• Overheating Protection (E1): Protects against excessive water temperature.

Electrical Specifications

• Power: 11,000W at 220V.

• Power: 13,000W at 240V.

• Current: 50A.

Installation Requirements

• Wire Gauge: 6 × 2 mm.

• Circuit Breaker: 50A–63A.

• Maximum Water Pressure: 6 bar.

• Minimum Operating Water Flow Rate: 1.2 L/min.

Warranty

- Warranty Period: 5 years from the date of installation.

Heater Installation Terms

• Installation Request: Contact the company's hotline at 16495.

• Important Note: Customers may open the carton only to take measurements. Installation must be performed exclusively by an authorized company technician.

Conditions and Restrictions for Installation

1. All plumbing work and mixer tap installations must be completed before installation.

2. Certified electrical wiring compatible with the heater's power rating must be provided.

3. A certified circuit breaker compatible with the heater's power rating must be provided.

4. No water pipes should be located at the designated installation point. Installation under these conditions is at the customer's own risk.

5. Water connections must be prepared by the customer, not the company.

6. Installation inside a gypsum board enclosure is prohibited to prevent damage in case of water leakage and to avoid maintenance difficulties. Installation under these conditions is at the customer's own risk.

7. Installation directly beneath a water source is prohibited. The heater may be installed under a sink only if positioned away from potential leakage sources.

8. Installation near a gas source is prohibited. A minimum distance of 100 cm must be maintained between the heater and any gas source.

9. 21 kW and 24 kW (3-phase) heaters must be connected directly to the power source. External electrical connections are prohibited, and installation using such connections is at the customer's own risk.

10. Upside-down installation is prohibited. The heater must be installed vertically only.
