Key Specifications

• German technology

• Fully digital

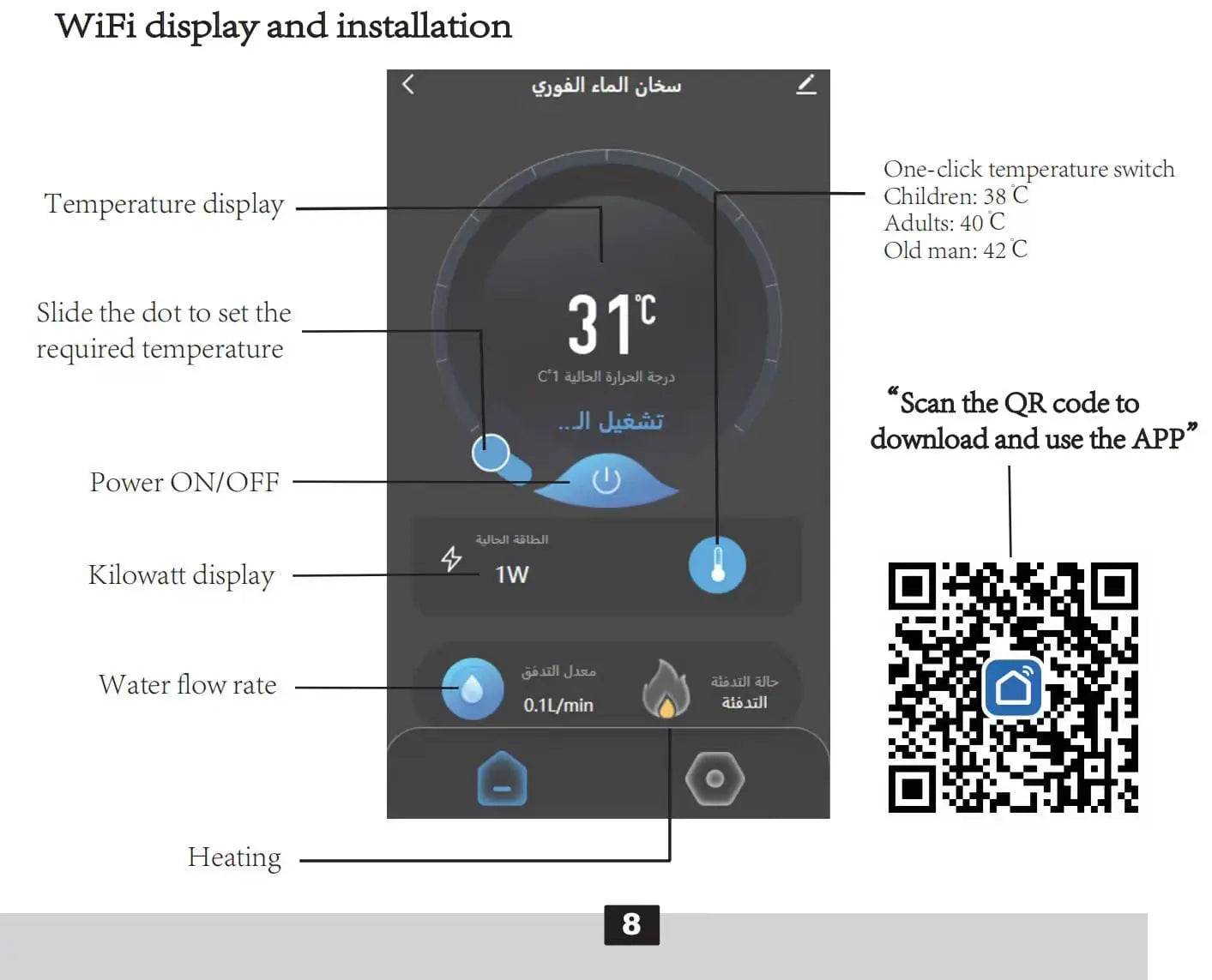

• Full control via mobile using the Smart Life app.

• Remote control with a 3-meter operating range

• Temperature range: 30°C (minimum) to 55°C (maximum)

• Internal memory retains the last used settings

• Maximum water flow rate: 8 L/min

• Smart performance: Automatic power consumption adjustment based on water flow and desired temperature (ECO MODE)

• Supplies two showers and a mixer tap (provided the distance does not exceed 7 meters) or a single outlet at a distance of 10 meters.

• Features “Boost Power Mode” (Extra Power) with 8 levels for manual current draw control.

Full Safety System

• Overflow Protection: Protects against excessive water inflow.

• Leakage Protection (E2): Protects against electrical or water leakage.

• Freeze Protection: Prevents water from freezing inside the unit.

• Dry-Burn Protection: Prevents operation without water.

• Overheating Protection (E1): Protects against excessive water temperature.

Electrical Specifications

• 13,000W – 220V / 15,000W – 240V

• 59A

Installation Requirements

• Wire gauge: 2 × 10 mm²

• Circuit breaker: 63A

• Maximum water pressure: 6 bar

• Minimum flow rate for operation: 1.2 L/min

Warranty

• Five years from the date of installation.

Water Heater Installation Terms

How to submit a request to the company

• Contact the company’s hotline: 16495.

Important Note

• The customer may open the carton solely to take measurements; however, installation must be performed exclusively by a company technician.

Conditions and Restrictions for Instant Water Heater Installation

1. All plumbing work and mixer tap installations must be completed.

2. Provide certified wiring compatible with the heater’s power rating.

3. Provide a certified circuit breaker compatible with the heater’s power rating.

4. Ensure no water pipes are located at the specific installation point; installation is at the customer’s own risk.

5. Water connections must be prepared by the customer, not the company.

6. Installation inside gypsum board is prohibited to prevent damage to the gypsum. Due to potential leakage risks and the complexity of maintenance and installation, the unit is installed at the customer’s own risk.

7. The heater must not be installed directly beneath a water source; it may be installed under a sink, provided it is away from potential leak points.

8. The heater must not be installed near a gas source (a minimum distance of 100 cm must be maintained between the heater and the gas source).

9. Installing 21kW or 24kW (3-phase) heaters using external connections is prohibited; they must be connected directly to the power source. Installation using external connections is done at the customer’s own risk.

10. Installing the unit upside down is prohibited; it must be installed vertically only.
